Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PP PE OR FR-PE insulation
|
|
■PUR jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature:80℃.Rated voltage:voltage rating not specified
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
说明：
|
|
■导体使用单股或绞线裸铜或镀锡铜。
|
|
■PP PE 或者FR-PE绝缘
|
|
■PUR被覆
|
|
■裸铜或镀锡铜丝，缠绕或编织屏蔽
|
|
■额定温度：80℃额定电压：无规定
|
|
■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试
|
|
Applications:
|
|
■Internal wiring or external interconnection of electronic equipment.
|
|
应用：
|
|
■用于电子设备内部布线或外部连接。
|
|
UL Style& CUL Type
|
Cores
芯数
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Nom.Dia
|
shield
COVERAGE
屏蔽
覆盖率
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外径
|
Conductor
Resistance at 20℃导体电阻
|
|
线号
|
线数/线径
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL20235
CUL
（Stranded)
绞线
|
2C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
1.15
|
4.30
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
1.15
|
4.60
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
1.15
|
4.70
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
1.15
|
4.90
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
1.15
|
5.40
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
1.15
|
5.70
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
1.15
|
6.30
|
23.20
|
|
16
|
26/0.25
|
0.23
|
2.00
|
>=65
|
1.15
|
8.50
|
14.60
|
|
3C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
1.15
|
6.30
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
1.15
|
6.40
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
1.15
|
6.60
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
1.15
|
6.80
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
1.15
|
7.20
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
1.15
|
7.70
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
1.15
|
8.30
|
23.20
|
|
4C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
1.15
|
6.40
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
1.15
|
6.60
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
1.15
|
6.90
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
1.15
|
7.20
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
1.15
|
7.60
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
1.15
|
8.10
|
36.70
|
|
5C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
1.15
|
6.70
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
1.15
|
7.00
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
1.15
|
7.10
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
1.15
|
7.50
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
1.15
|
8.10
|
59.40
|
|
6C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
1.15
|
7.10
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
1.15
|
7.40
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
1.15
|
7.70
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
1.15
|
8.00
|
94.20
|
|
以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有
|

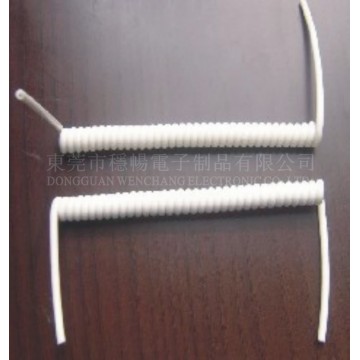

点击图片查看原图
