Product Description:
|
|
|
Applications:
|
|
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■Internal Wiring of Double-insulated Electric
|
|
■TPE insulation
|
|
|
|
|
Gardening Appliances, Lawn Mowers,or Snow Removers.
|
|
■TPE jacketed
|
|
|
|
|
" Polarity identification may be omitted
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
应用：
|
|
|
|
|
■Rated temperature:105℃.Rated voltage:300Volts
|
|
■双重绝缘电动圆艺器具，割草机，或雪去除内部布线，极性识别可以省略。
|
|
■Passes UL VW-1&CUL FT1 vertical flame test
|
|
Construction:
|
|
|
|
说明：
|
|
|
|
|
|
构造：
|
|
|
|
|
■导体使用单股或绞线裸铜或镀锡铜。
|
|
|

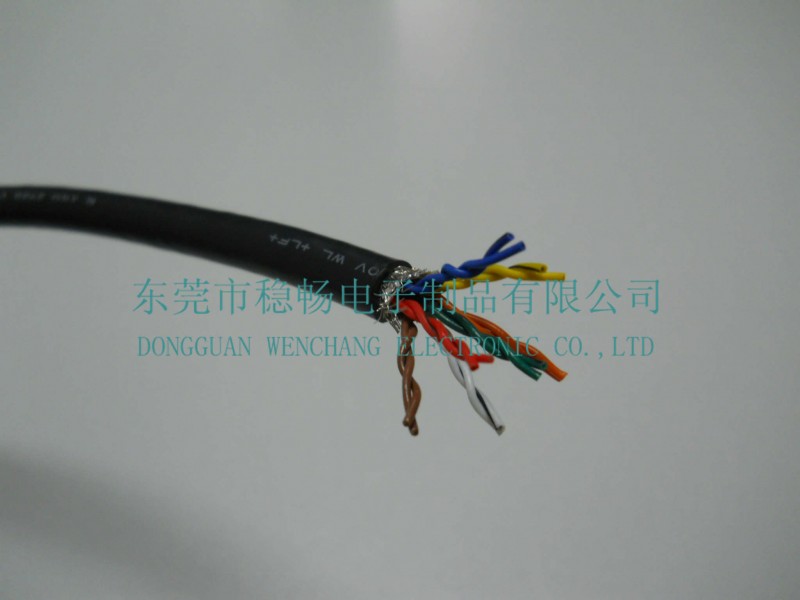

Pict
|
|
■TPE绝缘
|
|
|
|
|
|
|
■TPE被覆
|
|
|
|
|
|
|
■裸铜或镀锡铜丝，缠绕或编织屏蔽
|
|
|
|
■额定温度：105℃额定电压：300Volts
|
|
|
|
■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
UL Style& CUL Type
|
Cores
|
Conductor
|
Insulation
Thickness
|
Nom.Dia
|
Shield Coverage
|
Jacket Thickness
|
Overall
Diameter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL20057
CUL
（Stranded)
|
2C
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
7.40
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
7.80
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
0.76
|
8.40
|
14.60
|
|
14
|
41/0.25
|
0.76
|
3.50
|
>=65
|
0.76
|
9.70
|
8.96
|
UL20057
CUL
（Stranded)
|
3C
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
7.80
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
8.40
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
0.76
|
9.00
|
14.60
|
|
14
|
41/0.25
|
0.76
|
3.50
|
>=65
|
0.76
|
10.00
|
8.96
|
UL20057
CUL
（Stranded)
|
4C
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
8.40
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
9.40
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
0.76
|
10.00
|
14.60
|
|
14
|
41/0.25
|
0.76
|
3.50
|
>=65
|
0.76
|
11.20
|
8.96
|
UL20057
CUL
（Stranded)
|
5C
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
9.00
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
10.20
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
0.76
|
11.20
|
14.60
|
|
14
|
41/0.25
|
0.76
|
3.50
|
>=65
|
0.76
|
12.20
|
8.96
|
|
以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。
|
