| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Heating cable, where the acceptability of the | ||||||||
| ■TPE jacketed | combination is to be determined by Underwriters | ||||||||
| ■Tinned or bare copper wire spiral or braid shield | Laboratories Inc. | ||||||||
| ■Rated temperature:105℃.Rated voltage:300Volts | 应用： | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | ■发热电缆，在可接受的组合来确定保险商实验室有限公司 | ||||||||

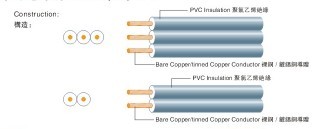

| 说明： | Construction: | ||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | 构造： | ||||||||
| ■TPE被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||
| ■额定温度：105℃额定电压：300Volts | |||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||
|
型号 UL Style |
芯数 Core qty |
导体 | 绝缘 | 包装 |
Conductor Resistance at 20℃ |
||||
| Conductor | Insulation | Packing | |||||||
| 线号 AWG | 线数/线径 No/Φmm |
绝缘厚度 Thickness mm |
完成外径 Over Diameter /mm |
米/卷 1KFT/Coil |
Ω/KM | ||||
|
UL20137 CUL （Stranded) |
2C | 24 | 11/0.160 | 0.76 | 2.20×4.4 | 1KFT | 94.20 | ||
| 22 | 17/0.160 | 0.76 | 2.3*4.6 | 1KFT | 59.40 | ||||
| 20 | 21/0.178 | 0.76 | 3.60×7.20 | 1KFT | 36.70 | ||||
| 18 | 34/0.178 | 0.76 | 2.7*5.4 | 1KFT | 23.20 | ||||
| 16 | 26/0.25 | 0.76 | 3.0*6.0 | 1KFT | 14.60 | ||||
| 14 | 41/0.25 | 0.76 | 3.4*6.8 | 1KFT | 8.96 | ||||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。 | |||||||||
