品牌:稳畅
起订:5000米
发货:7天内
发送询价
| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Pipe Heating Cable where the acceptability of the | ||||||||
| ■TPE insulation | combination is to be determined by Underwriters | ||||||||
| ■Tinned or bare copper wire spiral or braid shield | Laboratories Inc | ||||||||
| ■Rated temperature:105℃.Rated voltage:300Volts | 应用： | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | ■发热电缆相结合的可接受性是由保险商实验室公司决定 | ||||||||

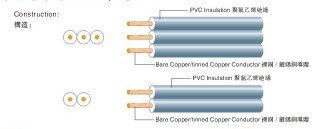

| 说明： | Construction: | ||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | 构造： | ||||||||
| ■TPE被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||
| ■额定温度：105℃额定电压：300Volts | |||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||
| UL Style& CUL Type |
芯数 Core qty |
导体 | 绝缘 | 包装 |
Conductor Resistance at 20℃ |
||||
| Conductor | Insulation | Packing | |||||||
| 线号 AWG | 线数/线径 No/Φmm |
绝缘厚度 Thickness mm |
完成外径 Over Diameter /mm |
米/卷 1KFT/Coil |
Ω/KM | ||||
|
UL20618 CUL （Stranded) |
2C | 18 | 34/0.178 | 1.524 | 4.3*8.6 | 1KFT | 23.20 | ||
| 16 | 26/0.25 | 1.524 | 4.6*9.2 | 1KFT | 14.60 | ||||
