品牌:稳畅
起订:5000米
发货:7天内
发送询价

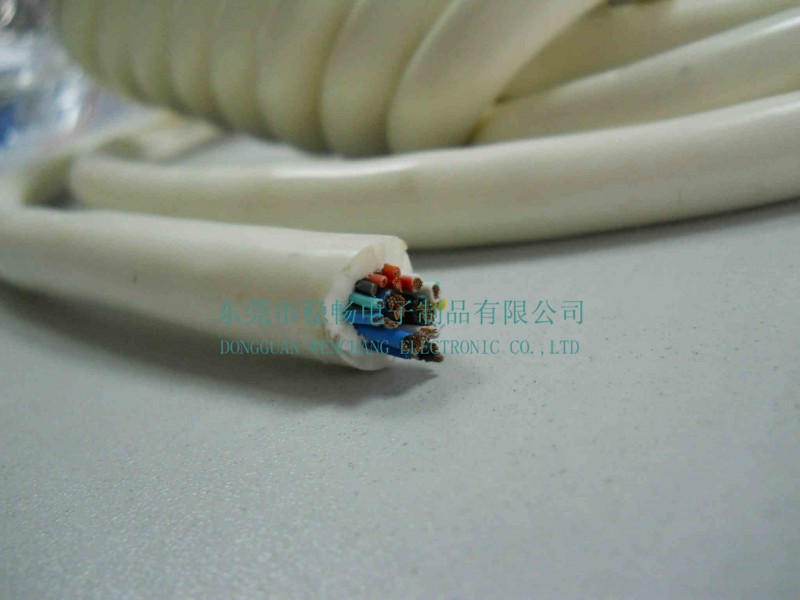

| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Internal wiring or external inter-connection of | ||||||||
| ■TPE insulation | electronic equipment (such as desk-type calculators, | ||||||||
| ■TPE jacketed | dictating machines, or X-ray equipment). | ||||||||
| ■Tinned or bare copper wire spiral or braid shield | 应用： | ||||||||
| ■Rated temperature:80℃90℃.Rated voltage:30 150 300 600Volts | ■内部和外部电子设备间连接（如桌面型计算器口授机或X射线设备。 | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | Construction: | ||||||||
| 说明： | 构造： | ||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||||
| ■TPE绝缘 | |||||||||
| ■TPE被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||
| ■额定温度：80，90℃额定电压：30 150 300 600Volts | |||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||
| UL Style& CUL Type | Cores | Conductor |
Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness |
Overall Diameter |
Conductor Resistance at 20℃ |
|
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL20626 CUL （Stranded) |
2C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.40 | 36.70 |
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 7.80 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 8.40 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 9.70 | 8.96 | ||
|
UL20626 CUL （Stranded) |
3C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.80 | 36.70 |
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 8.40 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 9.00 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 10.00 | 8.96 | ||
|
UL20626 CUL （Stranded) |
4C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 8.40 | 36.70 |
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 9.40 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 10.00 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 11.20 | 8.96 | ||
|
UL20626 CUL （Stranded) |
5C | 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.00 | 36.70 |
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 10.20 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 11.20 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 12.20 | 8.96 | ||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。 | |||||||||
