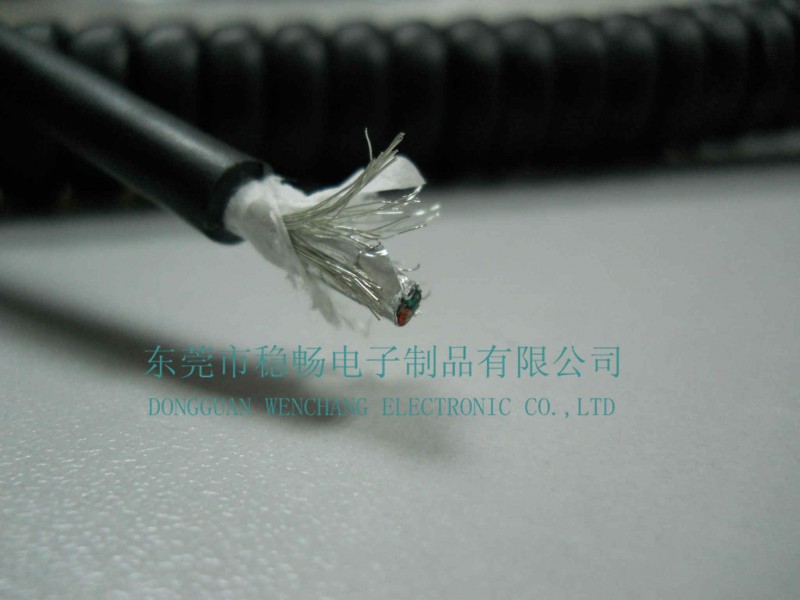

| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Internal wiring or external inter-connection of | ||||||||
| ■TPE XL-PE FR-PE insulation | electronic equipment (such as desk-type calculators, | ||||||||
| ■TPE jacketed | dictating machines, or X-ray equipment). | ||||||||
| ■Tinned or bare copper wire spiral or braid shield | 应用： | ||||||||
| ■Rated temperature:105℃.Rated voltage:300V OR 600V | ■内部或外部电子设备间的连接（如桌面型计算器，口授机或X射线设备）。 | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | Construction: | ||||||||
| 说明： | 构造： | ||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||||
| ■TPE，XL-PE FR-PE绝缘 | |||||||||
| ■TPE被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||
| ■额定温度：105℃额定电压：300V或者600V | |||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||
| UL Style& CUL Type | Cores | Conductor |
Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness |
Overall Dimeter |
Conductor Resistance at 20℃ |
|
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL21002 CUL （Stranded) |
2C | 30 | 7/0.100 | 0.38 | 1.10 | >=65 | 0.76 | 4.40 | 381.00 |
| 28 | 7/0.127 | 0.38 | 1.20 | >=65 | 0.76 | 4.50 | 239.00 | ||
| 26 | 7/0.16 | 0.38 | 1.30 | >=65 | 0.76 | 4.60 | 150.00 | ||
| 24 | 11/0.16 | 0.38 | 1.40 | >=65 | 0.76 | 4.90 | 94.20 | ||
| 22 | 17/0.16 | 0.38 | 1.60 | >=65 | 0.76 | 5.10 | 59.40 | ||
| 20 | 21/0.178 | 0.38 | 1.80 | >=65 | 0.76 | 5.50 | 36.70 | ||
| 18 | 34/0.178 | 0.38 | 2.10 | >=65 | 0.76 | 6.10 | 23.20 | ||
| 16 | 26/0.25 | 0.38 | 2.40 | >=65 | 0.76 | 6.90 | 14.60 | ||
|
UL21002 CUL （Stranded) |
3C | 30 | 7/0.100 | 0.38 | 1.10 | >=65 | 0.76 | 4.50 | 381.00 |
| 28 | 7/0.127 | 0.38 | 1.20 | >=65 | 0.76 | 4.70 | 239.00 | ||
| 26 | 7/0.16 | 0.38 | 1.30 | >=65 | 0.76 | 4.90 | 150.00 | ||
| 24 | 11/0.16 | 0.38 | 1.40 | >=65 | 0.76 | 5.10 | 94.20 | ||
| 22 | 17/0.16 | 0.38 | 1.60 | >=65 | 0.76 | 5.30 | 59.40 | ||
| 20 | 21/0.178 | 0.38 | 1.80 | >=65 | 0.76 | 6.00 | 36.70 | ||
| 18 | 34/0.178 | 0.38 | 2.10 | >=65 | 0.76 | 6.60 | 23.20 | ||
|
UL21002 CUL （Stranded) |
4C | 30 | 7/0.100 | 0.38 | 1.10 | >=65 | 0.76 | 4.70 | 381.00 |
| 28 | 7/0.127 | 0.38 | 1.20 | >=65 | 0.76 | 4.90 | 239.00 | ||
| 26 | 7/0.16 | 0.38 | 1.30 | >=65 | 0.76 | 5.20 | 150.00 | ||
| 24 | 11/0.16 | 0.38 | 1.40 | >=65 | 0.76 | 5.60 | 94.20 | ||
| 22 | 17/0.16 | 0.38 | 1.60 | >=65 | 0.76 | 5.90 | 59.40 | ||
| 20 | 21/0.178 | 0.38 | 1.80 | >=65 | 0.76 | 6.40 | 36.70 | ||
|
UL21002 CUL （Stranded) |
5C | 30 | 7/0.100 | 0.38 | 1.10 | >=65 | 0.76 | 4.90 | 381.00 |
| 28 | 7/0.127 | 0.38 | 1.20 | >=65 | 0.76 | 5.10 | 239.00 | ||
| 26 | 7/0.16 | 0.38 | 1.30 | >=65 | 0.76 | 5.20 | 150.00 | ||
| 24 | 11/0.16 | 0.38 | 1.40 | >=65 | 0.76 | 5.60 | 94.20 | ||
| 22 | 17/0.16 | 0.38 | 1.60 | >=65 | 0.76 | 6.20 | 59.40 | ||
|
UL21002 CUL （Stranded) |
6C | 30 | 7/0.100 | 0.38 | 1.10 | >=65 | 0.76 | 5.10 | 381.00 |
| 28 | 7/0.127 | 0.38 | 1.20 | >=65 | 0.76 | 5.50 | 239.00 | ||
| 26 | 7/0.16 | 0.38 | 1.30 | >=65 | 0.76 | 5.90 | 150.00 | ||
| 24 | 11/0.16 | 0.38 | 1.40 | >=65 | 0.76 | 6.20 | 94.20 | ||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有。 | |||||||||
