| Product Description: | ||||||||||

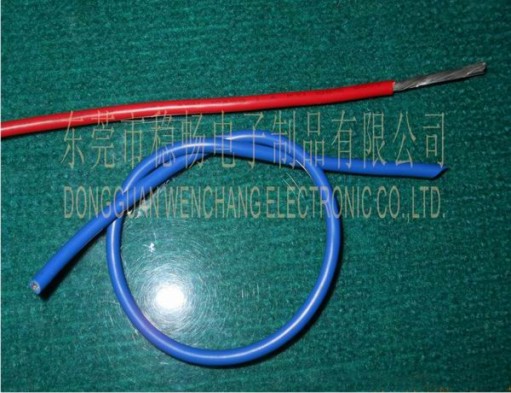

| ■Tinned ,annealed,stranded or solid copper conductor. | ||||||||||
| ■PVC insulation | ||||||||||
| ■Rated temperature:80℃.Rated voltage:30Volts | ||||||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | ||||||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test | ||||||||||
| 说明： | ||||||||||
| ■导体使用单股或绞线裸铜或镀锡铜,PVC绝缘 | ||||||||||
| ■PVC绝缘 | ||||||||||
| ■额定温度：80℃额定电压：30V | ||||||||||
| ■使用标准厚度，易剥，截断容易。 | ||||||||||
| ■可通过UL VW-1 及 CSA FT1 ，垂直燃烧测试 | ||||||||||
| APPlications: | ||||||||||
| ■For internal wiring of electronic and electrical equipment and power adaptor for portable pc | ||||||||||
| 应用： | ||||||||||
| ■用于电子,电器设备内部连接及手提电脑的变压器 | ||||||||||
| UL Style& CSA Type |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Overall Diameter 完成外径 |
Stand Put-up 标准长度 |
Conductor Resistance at 20℃导体电阻 |
|||||
| 线号 | 线数/线径 | 英制 | 公制 | |||||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | ||||
|
UL1571 CSA FT1 （Stranded) 绞线 |
32 | 7/0.08 | 0.20 | 0.60 | 2000 | 610 | 597.00 | |||
| 30 | 7/0.10 | 0.20 | 0.80 | 2000 | 610 | 381.00 | ||||
| 28 | 7/0.127 | 0.26 | 0.90 | 2000 | 610 | 239.00 | ||||
| 26 | 7/0.16 | 0.26 | 1.00 | 2000 | 610 | 150.00 | ||||
| 24 | 7/0.20 | 0.25 | 1.10 | 2000 | 610 | 94.20 | ||||
| 22 | 7/0.25 | 0.25 | 1.30 | 2000 | 610 | 59.40 | ||||
| 20 | 21/0.178 | 0.27 | 1.50 | 2000 | 610 | 36.70 | ||||
| 18 | 34/0.178 | 0.26 | 1.70 | 2000 | 610 | 23.20 | ||||
| 16 | 26/0.25 | 0.41 | 2.40 | 2000 | 610 | 14.60 | ||||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有 | ||||||||||
