| Product Description: | |||||||

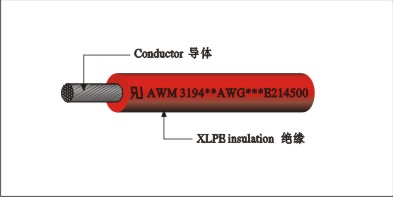

| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||
| ■XL-PE insulation. | |||||||
| ■Rated temperature:75℃.Rated voltage:300volts | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CUL FT1/FT2 vertical flamt test | |||||||
| or horizontal flame test. | |||||||
| ■Executive Standard:UL758 UL1581 CSA22.2. | |||||||
| 说明： | |||||||
| ■导体使用单股或绞线裸铜或镀锡铜 | |||||||
| ■无卤照射环保PE绝缘 | |||||||
| ■额定温度：75℃额定电压：300Volts | |||||||
| ■使用标准厚度，易剥，截断容易。 | |||||||
| ■可通过ULVW-1及CUL FT1/FT2， | |||||||
| 垂直燃烧测试或水平燃烧测试。 | |||||||
| ■执行标准:UL758 UL1581 CSA22.2. | |||||||
| Applications: | |||||||
| ■For general purpose internal wiring of electronic and electrical equipment. | |||||||
| 应用： | |||||||
| ■用于电子及电器设备内部配线. | |||||||
|
UL Style & CSA Type |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Overall Diameter 完成外径 |
Standard Put-up 标准长度 |
Conductor Resistance at 20℃导体电阻 |
||
| 线号 | 线数/线径 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL3194（Stranded) 绞线 |
26 | 7/0.16 | 0.38 | 1.30 | 2000 | 610 | 150.00 |
| 24 | 11/0.16 | 1.40 | 94.20 | ||||
| 22 | 17/0.16 | 1.60 | 59.40 | ||||
| 20 | 21/0.178 | 1.80 | 36.70 | ||||
| 18 | 34/0.178 | 2.10 | 23.20 | ||||
| 16 | 26/0.25 | 2.30 | 14.60 | ||||
|
UL3194（Top-coated) 先绞后镀 |
26 | 7/0.16 | 1.30 | 150.00 | |||
| 24 | 7/0.20 | 1.40 | 94.20 | ||||
| 22 | 7/0.25 | 1.60 | 59.40 | ||||
|
UL3194 （Solid) 单股 |
26 | 1/0.404 | 1.30 | 150.00 | |||
| 24 | 1/0.511 | 1.40 | 94.20 | ||||
| 22 | 1/0.643 | 1.60 | 59.40 | ||||
| 20 | 1/0.813 | 1.80 | 36.70 | ||||
| 18 | 1/1.024 | 2.10 | 23.20 | ||||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有 | |||||||
