| Product Description: | |||||||

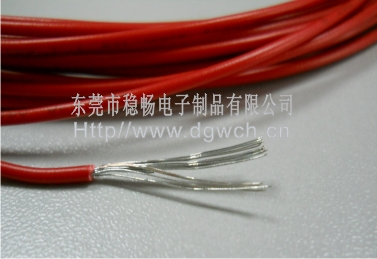

| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||
| ■TPE insulation. | |||||||
| ■Rated temperature:80℃.Rated voltage:300volts | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CUL FT1 vertical flamt test | |||||||
| ■Top coated conductor is avaiable | |||||||
| 说明： | |||||||
| ■导体使用单股或绞线裸铜或镀锡铜 | |||||||
| ■TPE绝缘 | |||||||
| ■额定温度：80℃额定电压：300Volts | |||||||
| ■使用标准厚度，易剥，截断容易。 | |||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||
| ■可使用先绞后镀（TC）为导体 | |||||||
| Applications: | |||||||
| ■For further processing in cables for electronic equipment or appliances. | |||||||
| 应用： | |||||||
| ■为进一步处理电子设备或电器电缆. | |||||||
| UL Style& CUL Type |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Overall Diameter 完成外径 |
Stand Put-up 标准长度 |
Conductor Resistance at 20℃导体电阻 |
||
| 线号 | 线数/线径 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL10189 CUL （Stranded) 绞线 |
22 | 17/0.16 | 0.33 | 1.50 | 2000 | 610 | 59.40 |
| 20 | 21/0.178 | 0.33 | 1.60 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.33 | 1.90 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.33 | 2.20 | 2000 | 610 | 14.60 | |
|
UL10189 CUL （Top-coated) 先绞后镀 |
22 | 7/0.25 | 0.33 | 1.50 | 2000 | 610 | 54.70 |
| 20 | 7/0.31 | 0.33 | 1.60 | 2000 | 610 | 37.10 | |
| 18 | 7/0.40 | 0.33 | 1.90 | 2000 | 610 | 23.70 | |
| 16 | 7/0.488 | 0.33 | 2.20 | 2000 | 610 | 14.20 | |
|
UL10189 CUL （Solid) 单股 |
22 | 1/0.643 | 0.33 | 1.50 | 2000 | 610 | 56.40 |
| 20 | 1/0.813 | 0.33 | 1.60 | 2000 | 610 | 35.20 | |
| 18 | 1/1.024 | 0.33 | 1.90 | 2000 | 610 | 22.20 | |
| 16 | 1/1.29 | 0.33 | 2.20 | 2000 | 610 | 14.00 | |
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有 | |||||||
