品牌:稳畅
起订:5000米
发货:7天内
发送询价

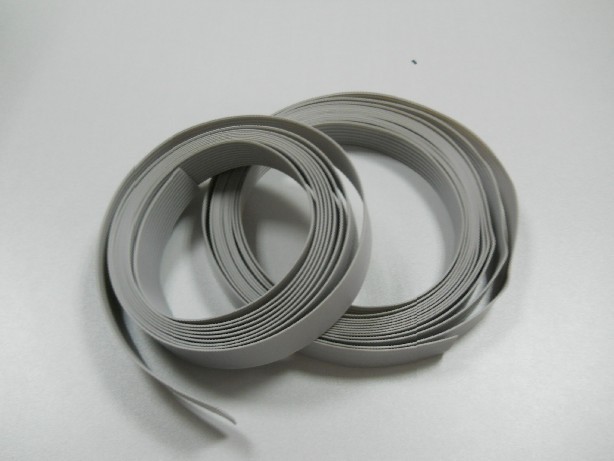

| Product Description: | |||||||
| ■Tinned,annealed,stranded or solid copper conductor. | |||||||
| ■Rated temperature:105℃.Rated voltage:600Volts | |||||||
| ■mppe insulation | |||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | |||||||
| ■Top coated conductor is available | |||||||
| 说明： | |||||||
| ■导体使用单股或绞线裸铜或镀锡铜或先绞后镀。 | |||||||
| ■额定温度：105℃,额定电压：600Volts | |||||||
| ■mppe绝缘 | |||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||
| ■可使用先绞后镀（TC）为导体 | |||||||
| Applications: | |||||||
| ■Internal wiring | |||||||
| 应用： | |||||||
| ■用于电子，电器，电脑设备内部连接。 | |||||||
| Construction: | |||||||
| 构造： | |||||||
| UL Style& CUL Type | Conductor | Pitch | Cores | Insulation Thickness |
Overall Diameter |
Conductor Resistance at 20℃ |
|
| AWG | No./mm | mm | NO | mm | mm | Ω/KM | |
| UL21516 CUL AWM I/A | 26 | 7/0.16 | 2.54 | 2P-40P | 0.23 | 1.05 | 150.00 |
| UL21516 CUL AWM I/A | 26 | 7/0.16 | 2.00 | 2P-50P | 0.23 | 1.05 | 150.00 |
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有 | |||||||
