品牌:稳畅
起订:5000米
发货:7天内
发送询价

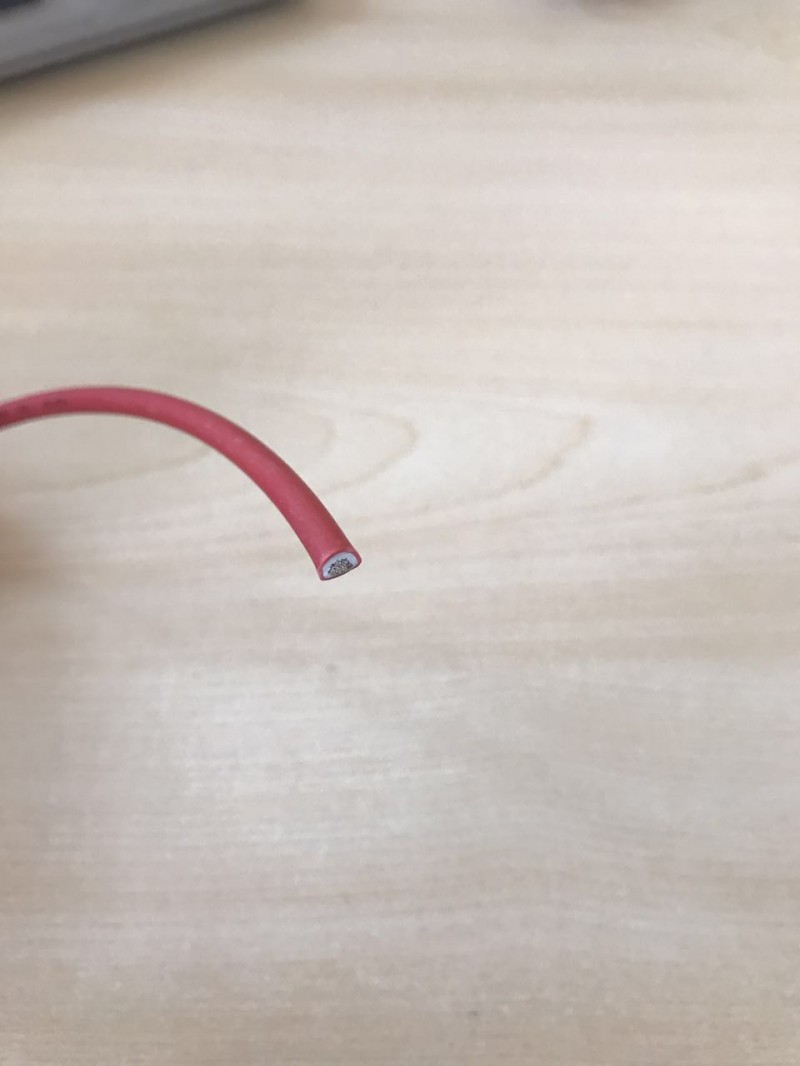

| RUBBER CABLE |
|
|||||||
| File No.:40044708 | ||||||||
| www.dgwenchang.com | ||||||||
| Product Description: | Applications: | |||||||
| ■Rated temperature:60℃ | ■used LED twinkle light, Christmas lights, lights, | |||||||
| ■Rated voltage:300/500volts | advertising lights and all kinds of small electric move | |||||||
| ■Reference standard:DIN VDE 0285-525-2-82 | tool connection | |||||||
| ■Bare or tinned stranded copper conductor | 应用： | |||||||
| ■EPR insulation | ■应用于各种LED灯串、圣诞灯、装饰灯、广告灯及各种小型电动 | |||||||
| ■CPE/CR jacket | 移动工具连接 | |||||||
| Construction: | ||||||||
| 说明： | 构造： | |||||||
| ■额定温度：60℃ |
|
|||||||
| ■额定电压：300/500Volts | ||||||||
| ■标准：DIN VDE 0285-525-2-82 | ||||||||
| ■导体使用裸软铜线或镀锡铜绞线 | ||||||||
| ■乙丙橡胶绝缘 |
|
|||||||
| ■氯丁橡胶或氯化聚乙烯橡胶护套 | ||||||||
|
Product Type 产品类别 |
Cores 芯数 |
Conductor 导体 |
Insulation 绝缘 |
Jacket 护套 |
||||
| Sectional Area(mm2) | Construction(NO/mm) |
Nom.thick mm |
Diam(mm) |
Nom.thick mm |
Nom.Diam(mm) | |||
| 截面积 | 线数/线径 | 厚度 | 直径 | 厚度 | 外径 | |||
| H03RN-F | 1C | 0.50 | 16/0.20 | 0.60 | 2.15 | 0.60 | 3.4 | |
| 0.75 | 24/0.20 | 0.60 | 2.40 | 0.60 | 3.6 | |||
