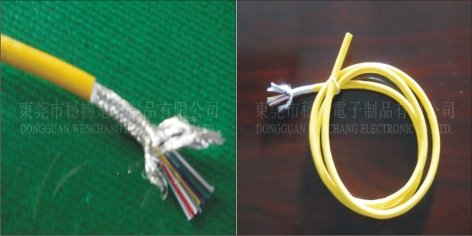

| Product Description: | |||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||||
| ■PVC insulation | |||||||||
| ■PVC jacketed | |||||||||
| ■Tinned or bare copper wire, spiral shield | |||||||||
| ■Rated temperature:80℃.Rated voltage:Voltage not specified | |||||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test | |||||||||
| 说明： | |||||||||
| ■导体使用单股或绞线裸铜或镀锡铜, | |||||||||
| ■PVC绝缘 | |||||||||
| ■PVC被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕屏蔽 | |||||||||
| ■额定温度：80℃额定电压：没有规定 | |||||||||
| ■可通过UL VW-1 及 CSA FT1 ，垂直燃烧测试 | |||||||||
| APPlications: | |||||||||
| ■For use in recording studios,sound systems and electronic circuits. | |||||||||
| 应用： | |||||||||
| ■用于录音机录像工作室，音响系统，电子电路系统。 | |||||||||
| UL Style& CSA Type |
Cores 芯数 |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Nom.Dia |
Spiral shield 缠绕隔离 |
Jacket Thickness 被覆厚度 |
Overall Diameter 完成外径 |
Conductor Resistance at 20℃导体电阻 |
|
| 线号 | 线数/线径 | ||||||||
| AWG | No/mm | mm | mm | NO/mm | mm | mm | Ω/KM | ||
|
UL2845 CSA （Stranded) 绞线 |
2C | 28 | 7/0.127 | 0.3 | 1.00 | 29/0.12 | 0.30 | 1.9×3.8 | 239.00 |
| 26 | 7/0.16 | 0.3 | 1.10 | 30/0.12 | 0.30 | 2.0×4.0 | 150.00 | ||
| 24 | 11/0.16 | 0.3 | 1.20 | 34/0.12 | 0.30 | 2.1×4.2 | 94.20 | ||
| 22 | 17/0.16 | 0.3 | 1.40 | 39/0.12 | 0.30 | 2.3×4.6 | 59.40 | ||
| 3C | 28 | 7/0.127 | 0.3 | 1.00 | 29/0.12 | 0.30 | 1.9×5.7 | 239.00 | |
| 26 | 7/0.16 | 0.3 | 1.10 | 30/0.12 | 0.30 | 2.0×6.0 | 150.00 | ||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有 | |||||||||
|
